PID Intelligent Micro Cryostat Thermostatic Oil Bath for Precise Temperature Control

Name: PID Intelligent Micro Cryostat Thermostatic Oil Bath for Precise Temperature Control
Brand: Dearto
Price: 4 USD

Cheap PID Intelligent Micro Cryostat Thermostatic Oil Bath for Precise Temperature Control wholesale

Warranty : 1 years

Customized support : OEM, ODM, OBM

Place of Origin : Shandong, China

Brand Name : Dearto

Model Number : DTS-BG Series

Display resolution : 0.001℃

Dimensions(mm) : 420*215*400

Control method : Touch

Power supply : 220V,50/60Hz

Working medium : Special oil

Color : White

Packaging Details : Carton Packing

Supply Ability : 1000 Set/Sets per Month

Price : $4,000.00 - $8,000.00/sets

MOQ : 1

Contact Now

Product Overview

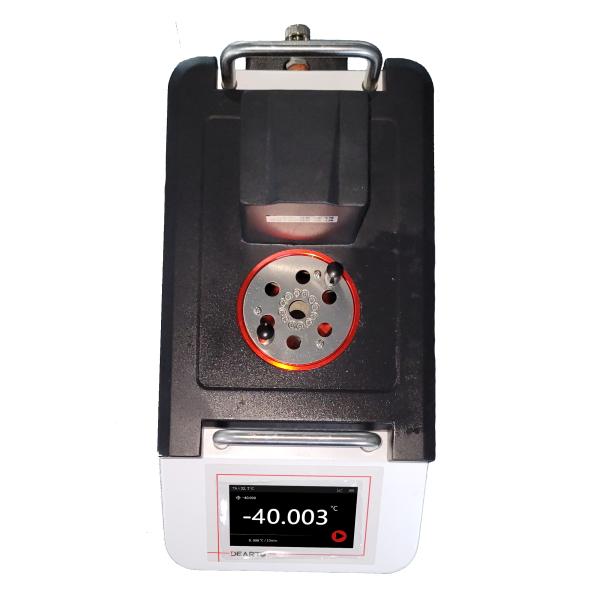

DTS-BG ultra-portable intelligent thermostatic oil bath

DTS-BG ultra-portable intelligent constant temperature oil bath is a high-precision automatic control temperature verification device, which has the characteristics of good temperature stability, uniform temperature field and high temperature control accuracy. Adopt fully enclosed compressor refrigeration system and intelligent PID adjustment to realize automatic temperature control. The bath is compact in structure, light in weight, easy to carry and durable. It is suitable for the on-site verification/ calibration of various types of industrial thermal resistance, low temperature thermocouples, armored thermocouples, working glass liquid thermometers, standard mercury thermometers, bimetal thermometers, pressure thermometers and other temperature sensors.

FEATURES AT A GLANCE

-Compact dimensions;

-Intelligent touch screen control;

-Display temperature difference,fluctuation data;

-Automatic segment temperature control,rapid cooling/heating "0"overshoot;

-Micro-circulation technology;

-Temperature curve display. ETC.

PID Intelligent Micro Cryostat Thermostatic Oil Bath for Precise Temperature Control

Front elevation

Back elevation

Vertical view

Operation interface

Starting interface

Curve display interface

Setting interface

PRODUCT SPECIFICATIONS

Product name	Intelligent micro refrigerated/heated thermostatic bath
Model	DTS-10BG	DTS-20BG	DTS-30BG	DTS-95BG	DTS-125BG	DTS-40BG
Temperature range	-10℃~180℃	-20℃~150℃	-30℃~150℃	-40℃~95℃	-40℃~125℃	Customized
Temperature range			-20℃~180℃				-40℃~150/180℃
Control method	Touch screen
Display resolution	0.001℃
Temperature fluctuation	≤±0.02℃/10min（0℃）
Temperature uniformity	≤0.02℃（0℃）
Heating rate	6.5℃~11.5℃/min
Cooling rate	5℃~10℃/min（20℃）
Work area size	Φ80×280 mm
Dimensions（mm）	500(L)×220(W)×600(H)
Working medium	Special medium					Anhydrous alcohol	Special medium
Remarks	Flange size can be customized according to customer needs
